1、Features a unique square design with a 35% increase in capacity compared to previous models
2、It features a novel appearance crafted by a renowned designer, supported by design patent CN307264698S
3、The system is driven by sophisticated software algorithms that seamlessly adapt to various environments, registered under software copyright 2020SR0396900
4、It incorporates a comprehensive noise-reduction design for a quieter workspace, protected by utility model patent CN217127741U

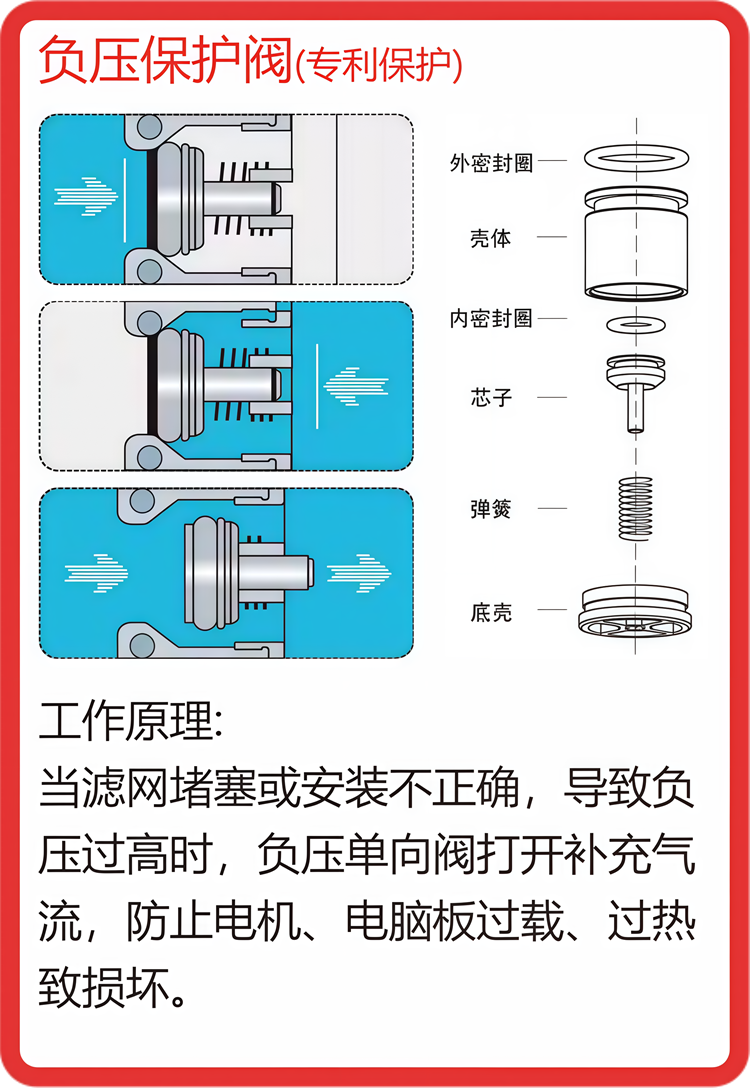

5、It features an anti-clog safety valve design that definitively resolves motor and control board overheating caused by filter blockages, covered by utility model patent CN217127740U
6、It features a real-time temperature and speed display for clear data visibility and precise speed control

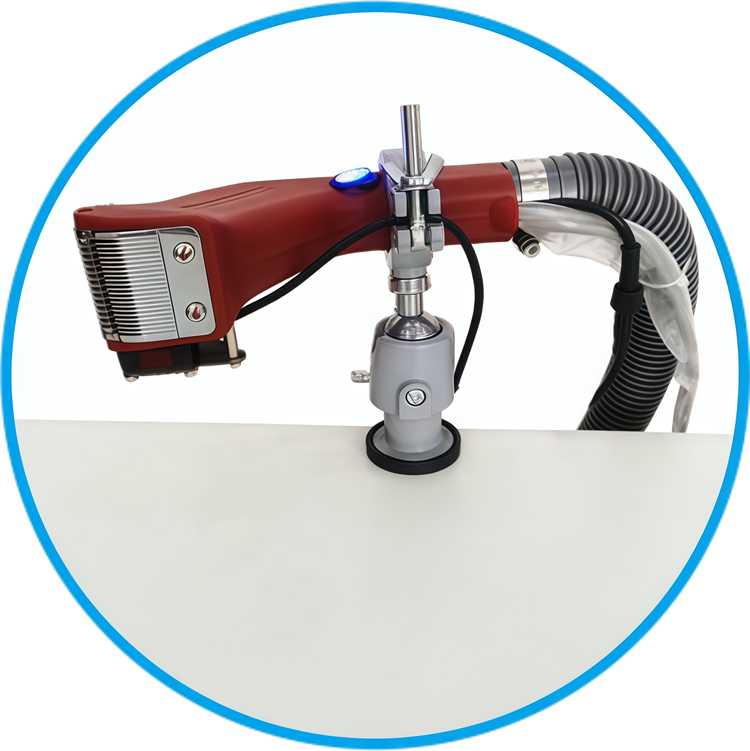

7.、It features an ergonomically designed carrying handle for easier and more convenient installation
8、A handle mounting bracket with multi-angle adjustability, designed to suit operators with different preferences
9、Both the suction motor and the handle motor utilize brushless technology, offering a service life approximately ten times longer than that of conventional motors
10、It employs an optical sensor mode where the blade activates only when fabric is detected, significantly extending the service life of both the blade and the motor
| Model | YS-J2022T |
| Name | Smart & Brushless |
| Voltage | 110V/220V |
| Power | 450W |
| Frequency | 50/60Hz |
| Motor Type | Dual Brushless Fans |
| Lubrication Type | Automatic Lubrication |
| Speed Control Mode | Stepless Speed Control |
| Maximum Speed | 28000 |
| Overheat Protection | YES |
| Sensing Distance | 3-15cm |
