Product Appearance Display
Usage Demonstration

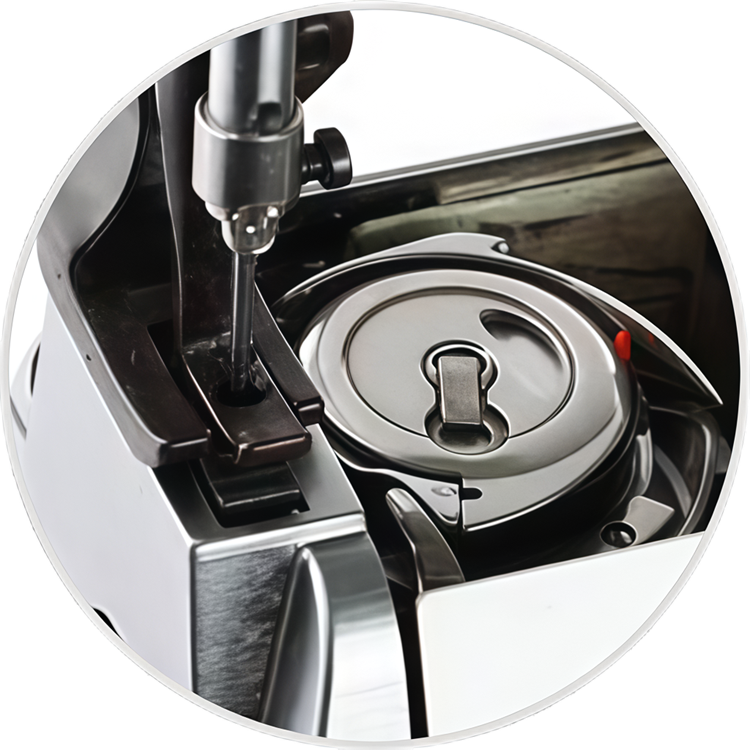

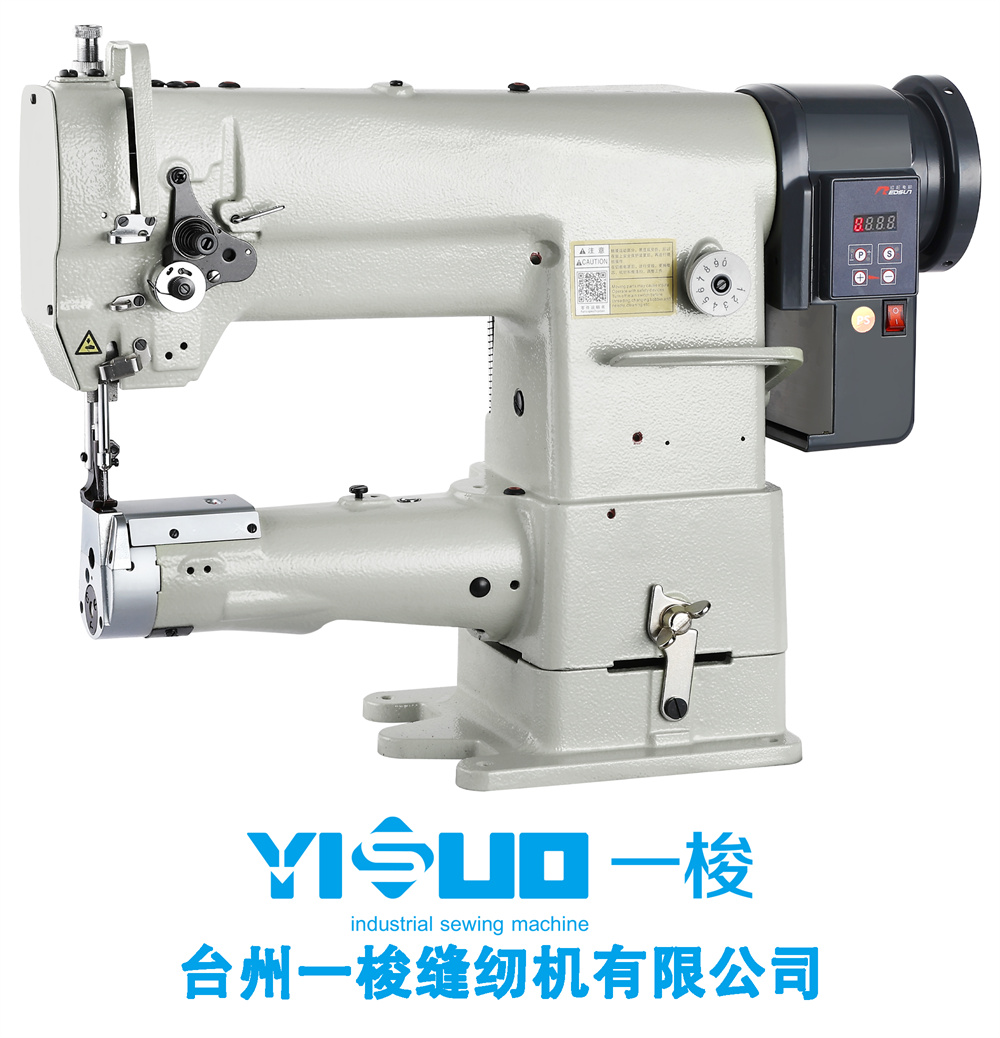

1、Model YS-341D Tubular Single-Needle Sewing Machine features synchronous feeding of needle, feed dog, and presser foot, effectively preventing fabric shifting and producing neat, uniform stitches. Equipped with a slide bar thread take-up mechanism and an imported vertical double-size rotating hook for thread catching, it forms two rows of parallel lock stitches. The upper and lower shafts are driven by synchronous toothed belts, while a knob-style disc stitch length adjuster and a lever-type forward/reverse feeding mechanism ensure user-friendly operation. Additionally, a clutch-type safety device is incorporated to protect the machine from damage caused by overload
2、This model can be optionally equipped with an electronic positioning motor, which allows the needle to be controlled to always stop either above or below the fabric during sewing pauses. This eliminates the need to frequently manually rotate the handwheel when stopping, making
This product is widely used in sewing products such as tents, archways, parachutes, hot air balloons, cushions, and sofas. It is particularly suitable for filter bags and ring-shaped cylindrical items



| Model | YS-341D |
| Maximum Sewing Speed | 1800 |
| Presser Foot Lift Height(mm) | 11 |
| Needle Bar Stroke (mm) | 33.6 |
| Needle Spacing(mm) | 12.7、95、7.9、6.4、4.8mm |
| Cylinder Diameter(mm) | 70 |
| Working Space(mm) | 230x100 |
| Thread Take-Up Lever Stroke(mm) | 60 |
| Motor Power Rating | 750W Electronic Motor |
| Needle | DPX17 18#-24# |
| Lubrication | Hand Lubrication |
| Rotating Hook (Rotary Hook) | Large Vertical Rotating Hook |
