Functional Features / Key Characteristics：

1、Equipped with a touchscreen operating system, featuring stable software performance and an intuitive user interface

2、Two feeding modes are available: Standard Mode and Large‑Button Rapid Mode, allowing flexible switching as needed.Standard Feeding: Buttons are fed directly from the feeding chute to the button clamp.Large‑Button Rapid Mode: When the "Large‑Button Rapid" parameter is enabled, buttons are pre‑fed to an adjustable standby position between the feeder and the button sewer, achieving faster feeding compared to the standard mode

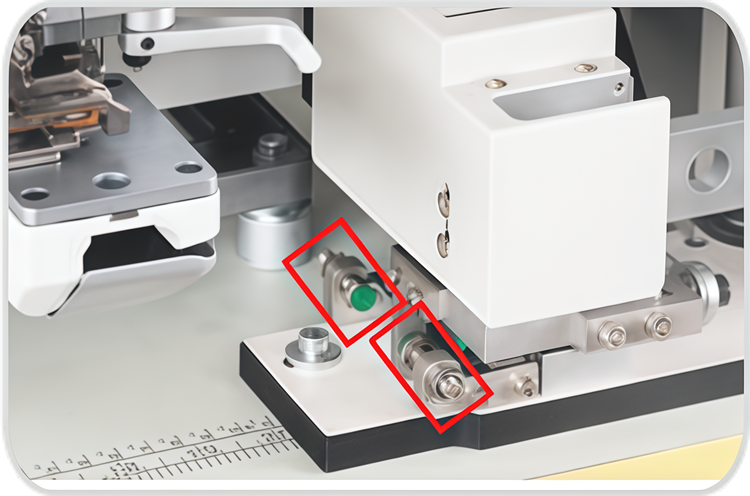

3、Button Shank Length Adjustment Mechanism on Machine Arm：The length can be swiftly adapted to various button shanks by adjusting a screw, offering convenient and rapid operation

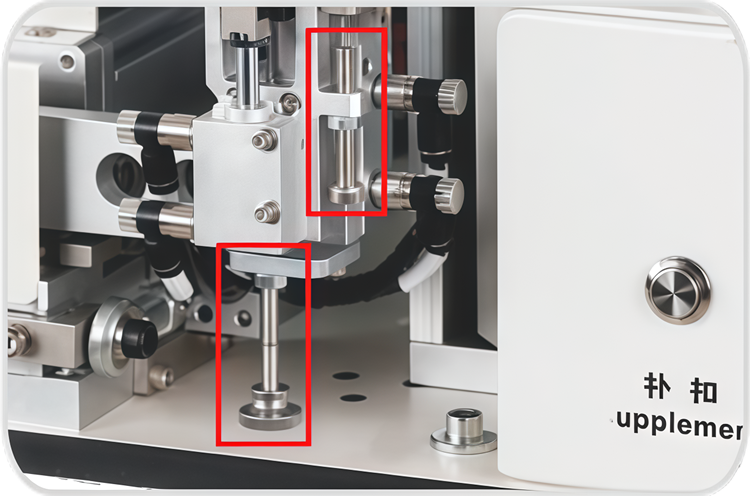

4、Button Clamping and Pressing System：Utilizes a cylinder-driven pressing mechanism to ensure precise button positioning without deviation, delivering a more secure and stable clamping performance

5、Button Feeding System：Features a uniquely designed, streamlined feeding chute with dual-direction (bottom and top) air-blowing to prevent jamming and ensure smooth button delivery.Timed Reverse Air Blow Device，Periodically activates reverse airflow to prevent button clogging at the chute entrance, ensuring continuous and stable button supply

6、Servo Motor：A high-power servo motor is employed for button feeding, delivering high-speed operation with minimal vibration and low noise, thereby significantly improving feeding efficiency.

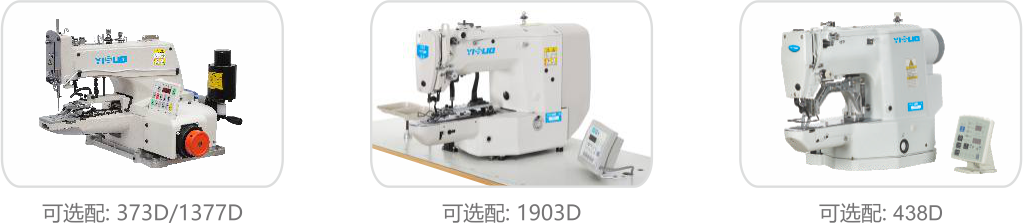

Compatibility：This device is compatible with button sewing machines from various brands and models (e.g., Juki, Brother) and can be integrated with existing button sewers already in use at garment factories, greatly reducing the cost of purchasing new equipment
