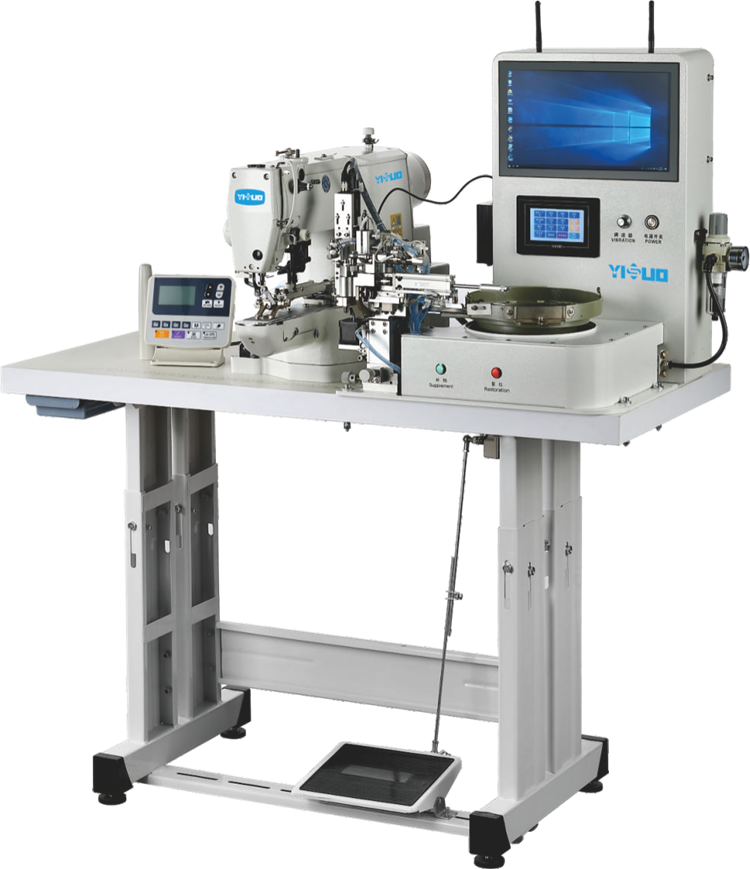

Automatic buckle feeder (logo recognition)

YS-968-S

Product advantages

AI Smart Camera

Equipped with a Computer Host System

7.3‑inch Large Touchscreen

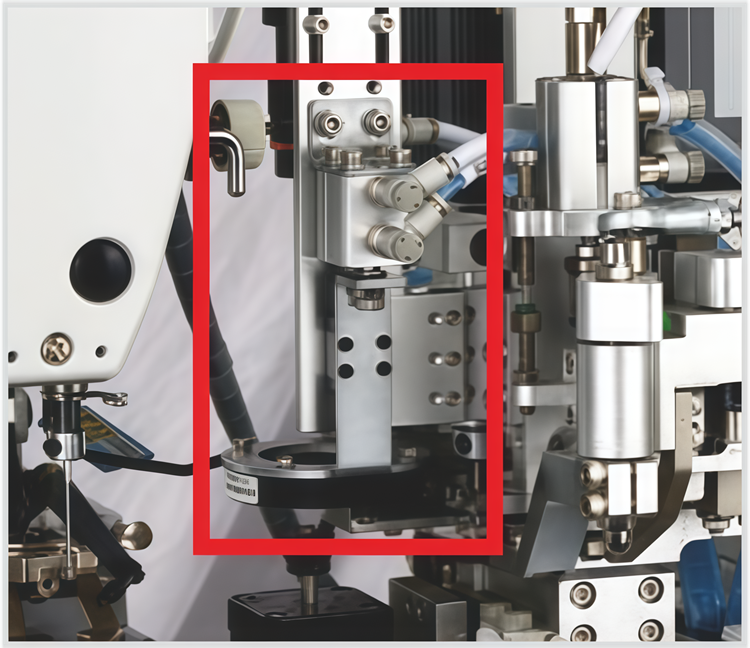

Dual‑Camera System for Front

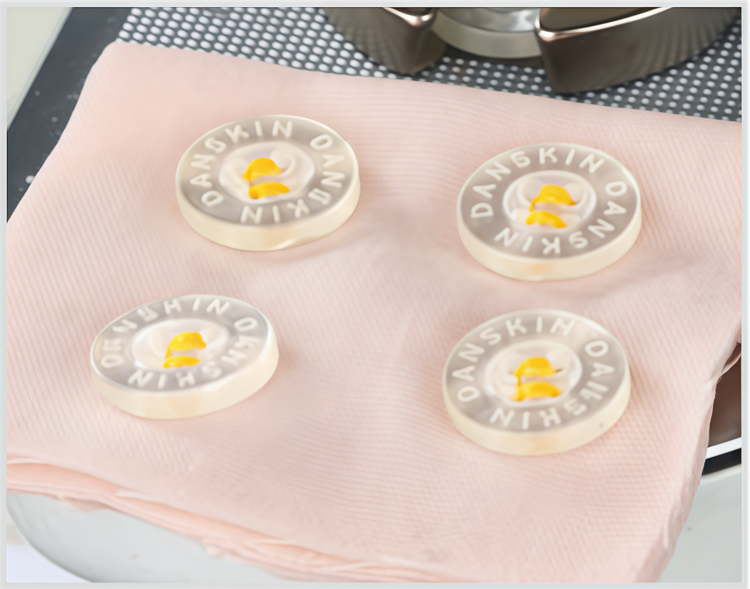

Adjustable‑Height Light Source Capable of Recognizing 90% of Market‑Available Buttons

1、With this device, the button sewing machine operates at over three times the efficiency of manual mechanical button sewers. The fully automatic feeding system allows selection of front/back sides (customizable for non‑standard buttons), with a feeding time of 0.5 seconds per button, achieving approximately 120 feeds per minute. The button feeding system is simple and convenient—just one‑click operation

2、Button Compatibility: Diameter 8mm‑30mm, suitable for both 4‑hole and 2‑hole buttons

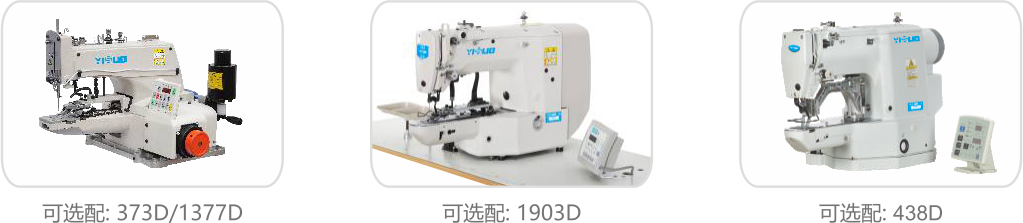

3、This button feeding device is universally compatible with various machine series such as 1903, 438, 373, 4‑2, etc., offering strong adaptability

Specifications

Model	YS-968-S	YS-968-S-1903	YS-968-S-438	YS-968-S-373	YS-968-S-1377
Configuration	Single Configuration	1903D	438D	373D	1377D
Needle（DP*17)		DP*17-14	DP*17-14	TQ*1-14	TQ*1-14
Rated Button Sewing Speed（PCS/min）	40-50	40-50	40-50	40-50	40-50
Continuous Button Sewing Speed（PCS/min）	60-65	60-65	60-65	60-65	60-65
Maximum Speed (RPM)		2600pm	2600pm	1500pm	1500pm
Presser Foot Lift Height （mm）		12	12	13	13
Button Diameter（mm）	8-28	8-28	8-28	8-28	8-28
Button Thickness（mm）	1-5	1-5	1-5	1-5	1-5
Air Pressure	0.25-0.30	0.25-0.30	0.25-0.30	0.25-0.30	0.25-0.30
Voltage	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz
Rated Power	500	600+500	600+500	600+500	600+500
Button Feeding Stability	99.70%	99.70%	99.70%	99.70%	99.70%
Packaging Dimensions（mm）	580x550x460	1250x750x1220	1250x750x1220	1250x750x1220	1250x750x1220
Weight	35kg	135kg	135kg	115kg	115kg
