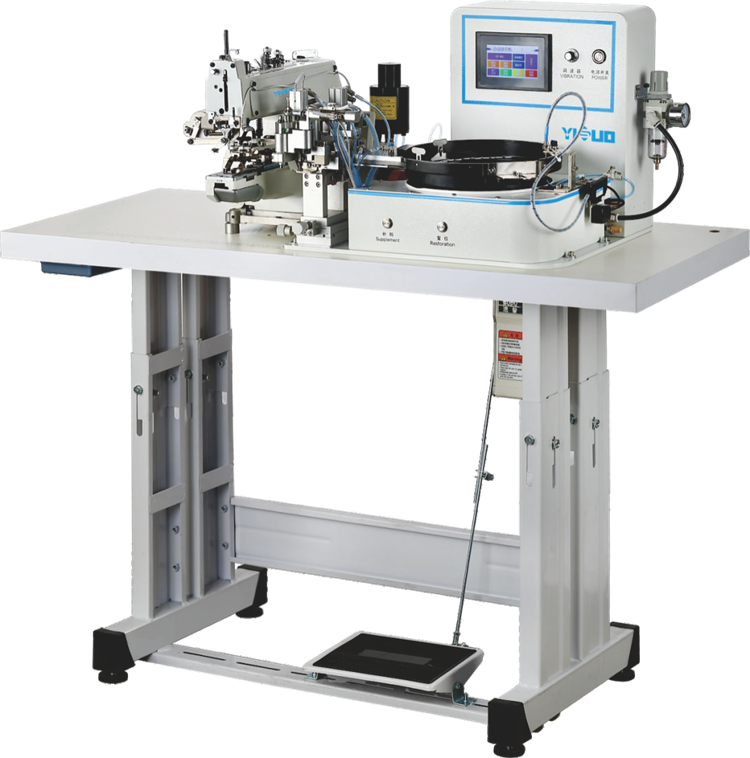

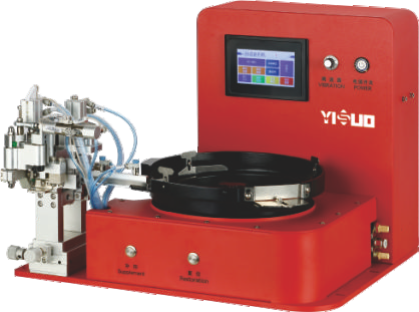

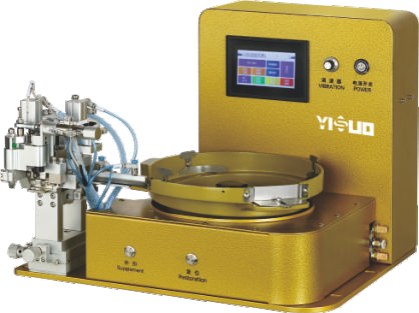

Automatic Button Feeder (Flat Button)
YS-968-373
Use video
立扣
平扣
Product advantages

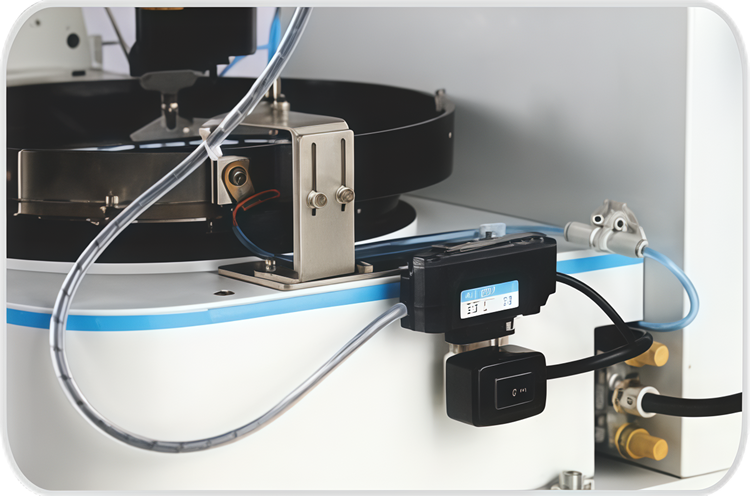

可选配颜色识别装置

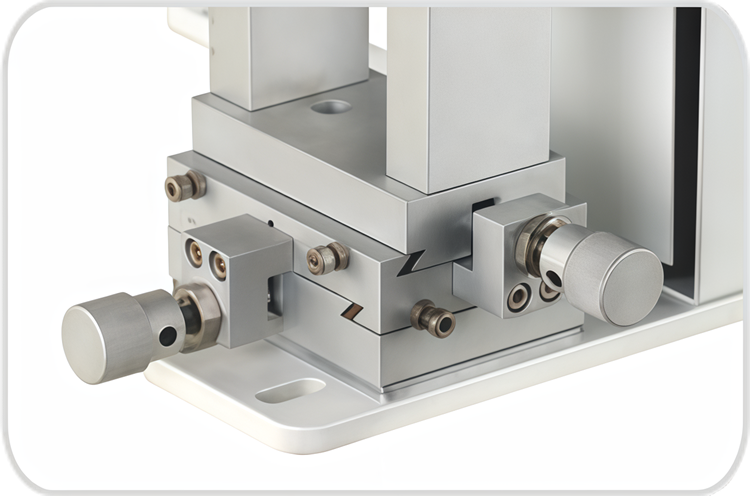

微调功能开关(选配)
1、钉扣机配此装置效率高，是人工机械式钉扣机的3倍以上，全自动送扣系统可以选定正反面(非标可定做)，每次送扣时间为0.5秒，每分钟送扣120次左右，输钮系统方便简单，一键搞定

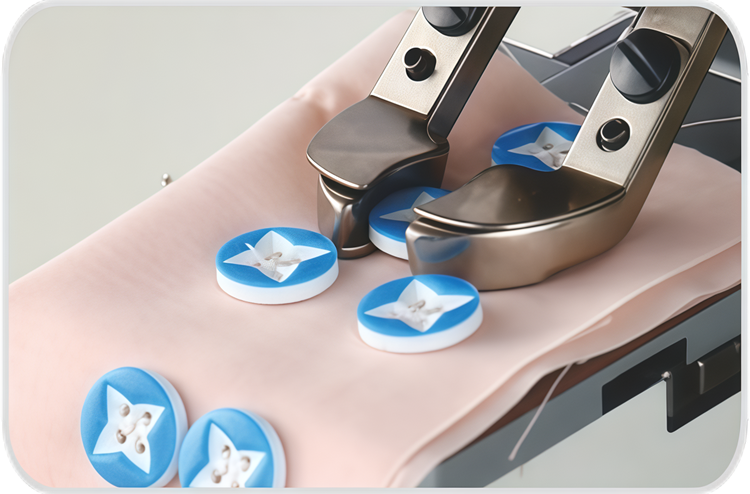

2、纽扣适用范围6mm-28mm，四孔位，两孔位

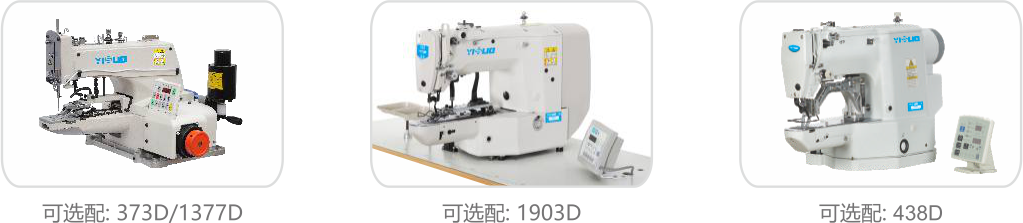

3、此送扣装置可通配1903系列，438系列，373系列，1377系列，4-2系列等机型，适用性能强
Specifications
| Model | YS-968 | YS-968-1903 | YS-968-438 | YS-968-373 | YS-968-1377 |
| Configuration | Single Configuration | 1903D | 438D | 373D | 1377D |
| Needle（DP*17) | TQ*1-14 | TQ*1-14 | TQ*1-14 | TQ*1-14 | |
| Rated Button Sewing Speed（PCS/min） | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 |
| Continuous Button Sewing Speed（PCS/min） | 60-65 | 60-65 | 60-65 | 60-65 | 60-65 |
| Maximum Speed (RPM) | 2600pm | 2600pm | 1500pm | 1500pm | |
| Presser Foot Lift Height（mm） | 12 | 13 | 13 | ||
| Button Diameter（mm） | 6-28 | 6-28 | 6-28 | 6-28 | 6-28 |
| Button Thickness（mm） | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| Air Pressure | 0.25-0.30 | 0.25-0.30 | 0.25-0.30 | 0.25-0.30 | 0.25-0.30 |
| Voltage | VAC110/220V±10%: 50/60Hz | VAC110/220V±10%: 50/60Hz | VAC110/220V±10%: 50/60Hz | VAC110/220V±10%: 50/60Hz | VAC110/220V±10%: 50/60Hz |
| Rated Power | 65 | 600+65 | 600+65 | 600+65 | 600+65 |
| Packaging Dimensions（mm） | 580x550x460 | 1250x750x1220 | 1250x750x1220 | 1250x750x1220 | 1250x750x1220 |
| Weight | 32kg | 132kg | 132kg | 112kg | 112kg |
