Ironing Material Rack (Optional Models)

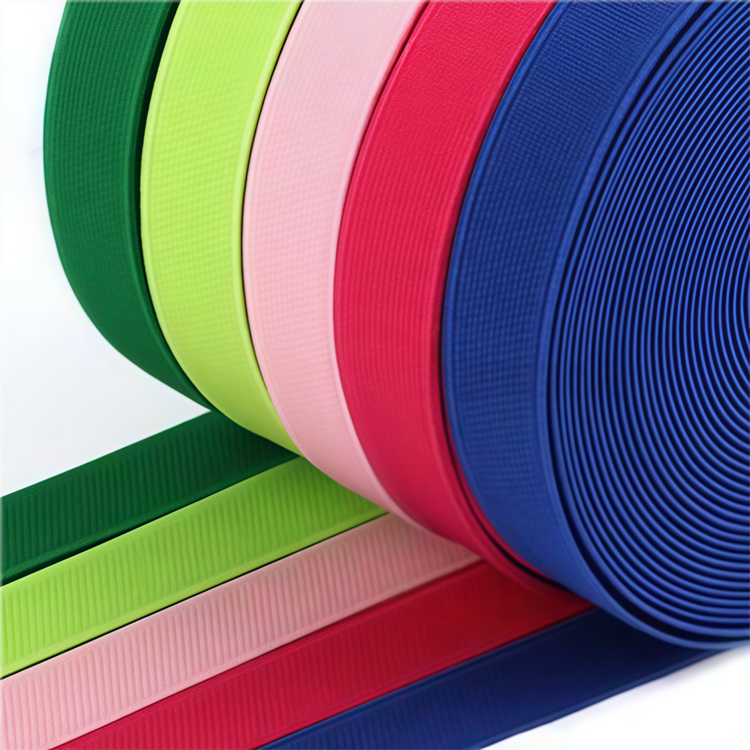

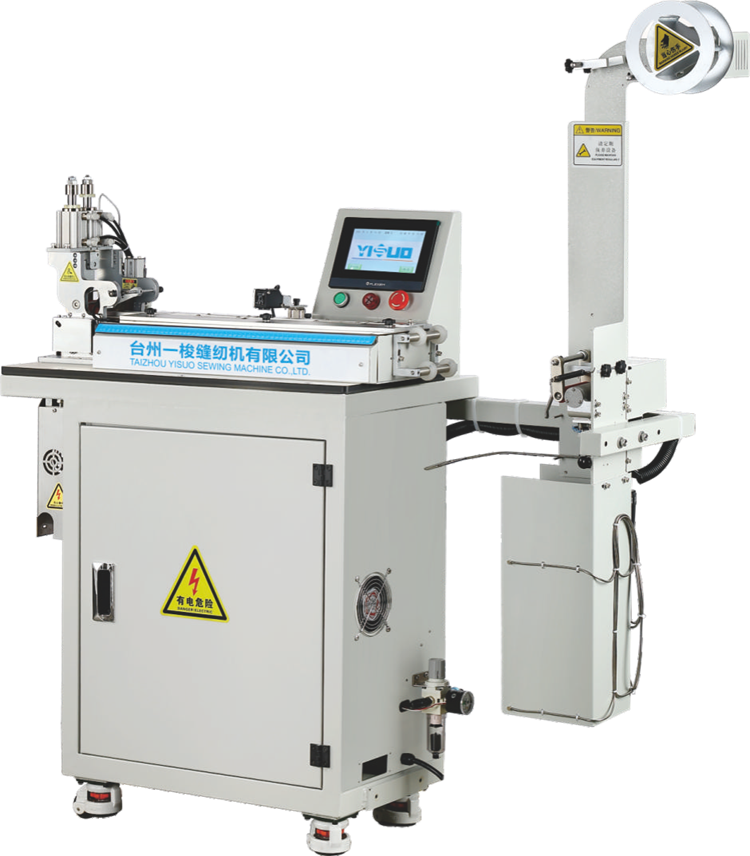

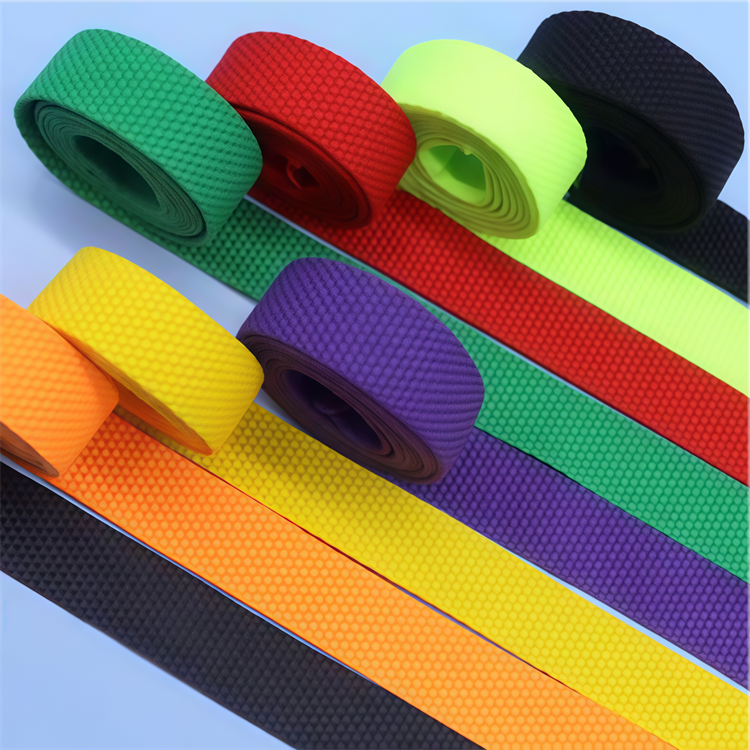

1、Fully automatic ultrasonic tape cutting machine, easy to operate, wide application range, high cutting quality with smooth and fray‑free cut surfaces. Suitable materials: webbing, hook‑and‑loop tape, labels, elastic bands, garment accessories, ribbons, etc
2、Core Features:Smooth cut with automatic edge sealing,PLC program control,Touchscreen operation,Automatic material feeding,Adjustable length and quantity settings,Memory function
3、20K transducer power, 1500W high speed: Can cut 66 pieces per minute (taking 260mm length as an example). High precision: Each cut is monitored by a stepper motor to ensure high accuracy in every operation
Wide and smooth cutting surface: Equipped with imported high‑power, high‑efficiency transducers, easily cuts materials of varying thicknesses, delivering flat, burr‑free, and fray‑free cut edges. Automatic operation: Simply set required parameters such as cut length and quantity—the computer handles the rest。
Fault Self‑check: Connection issues, material absence — once a fault occurs, the system automatically displays it on the screen
Automatic Pause: When material runs out, the system will automatically stop operation
Memory Function: Automatically saves all currently set parameters before power‑off
Attention:LMD:Gantry Cutter CSB:Ultrasonic Cutter
| Model | YS-80CSB |
| Cutting Tool | Ultrasonic Cutter |
| 切断长度(mm) | 50-9999 |
| Width(mm) | 10-80 |
| Sonic Frequency(hz) | 20K |
| Power | 1500W |
| Cutting Speed(p/min) | 150 |
| Air Pressure | 0.5Mpa、1.8L/min |
| Voltage | Single‑Phase 220V |
| Packaging Dimensions(mm) | 1500x650x1600 |
| Weight | 200kg |
